Industry Ed with Richard: Kitchen and Bath Guideline Series

In this post we will discuss the NKBA Kitchen and Bathroom Planning Guidelines, by first stating the guidelines and then pointing out their importance and giving insight on solutions and practices based on my industry experience. Find out more about NKBA here.

Kitchen Sink Placement

Source

NKBA Standards

• Primary purposes for sink are for preparation and cleanup.
• Sink must be adjacent to or across from both the cooking area and the refrigerator.
• Include at least 24" wide landing area to one side of the sink and at least 18" wide landing area on the other side.
• If your primary preparation area is immediately next to your sink, on one side, include a section of continuous countertop of at least 36".
• The sink should be no closer than 3" from the back wall or 3" from the edge.

My Experience

• Sinks come in all shapes and sizes. Sizes range from 33"- 36" - 39" - 42" and even up to 7' long, like the galley sink (click here see our past blog post on galley sinks).
• The standard size is 33" wide x 22" deep.
• Sinks can be a single bowl, or double bowl. It depends on the users preference; a double bowl allows for some drying space inside the sink.  Some new sinks come with a low divide that allows you to turn the sink into a single divide when filled.
• They can also come in all kinds of materials; stainless steel, granite composite, copper, fire clay, just to name a few.
• Sinks are most commonly placed under a window or in an island; sometimes they are placed on a diagonal. If a sink is on a diagonal, a dishwasher cannot be too close to the corner; NKBA standards require 21" from the opposite corner for proper clearance.
• When designing, I often flank the sink with both a dishwasher and a garbage pullout.
• Many kitchens have a secondary sink, usually referred to as a vegetable sink. These are good to have if the range is too far away from the primary sink, or can just be a convenience if your larger sink is occupied with prep and cleanup for such things as hand washing. Vegetable sinks are usually 12" - 25" wide.
• Many homes have a wet bar area, this is usually most adjacent to the dining or living area. I find that many people want to center their bar sink, but I recommend setting it off to one side, leaving ample counter space for drink preparation.

Source

Source

 This image is a good example of when a vegetable sink is necessary. See the vegetable sink is in the island and directly across from the range; in the case it is closer to the range than the primary sink.

Source

Source

Source

I hope you enjoy the information in my blog! Please don't hesitate to contact me if you have any questions! - Richard

History Lesson: Zaha Hadid

Source

This history lesson is in honor of Zaha Hadid who recently passed, a very influential architect who left quite an impact on the world and the world of design.

Source

"Dame Zaha Mohammad Hadid, (31 October 1950 – 31 March 2016) was an Iraqi-born British architect. She was the first woman and the first Muslim to receive the Pritzker Architecture Prize, winning it in 2004. She received the Stirling Prize in 2010 and 2011. In 2012, she was created a Dame Commander of the Order of the British Empire and in 2015 she became the first woman to be awarded the RIBA Gold Medal in her own right."  -- Wikipedia

Heydar Aliyev Centre in Baku, Azerbaijan (2013)

Source

Source

Source

"There is no single Hadid style, although one can detect a watermark in her buildings’ futuristic smoothness. Certain themes carry through her use of materials (glass, steel, concrete), her lines (corridors often trace flowing arabesque shapes, while roof struts make sharp Z-shaped angles), her structures (she favors column-free spaces), and her sculptural interiors and asymmetric façades. In all her work, Hadid is concerned with movement and speed—both the way people will move through the buildings and the way a sight line travels through light and shadow. Her exteriors seem to be shaped by the movement inside and around them, rather than by some predetermined notion of external form." -- John Seabrook, The Newyorker

Check out more of her fantastic work!

Soho Gallery in Beijing, China (2012)

Source

Source

Dongdaeumun Design Plaza in Seoul, South Korea

Source

Jockey Club Innovation Tower at Hong Kong Polytechnic University

Source

Serpentine Sackler Gallery in London.

Source

London Aquatic Centre

Source

Messner Mountain Museum Corones in Italy.

Source

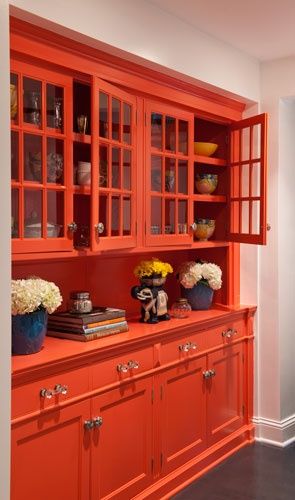

Trend Alert: Colored Cabinets

It is officially spring!  And nothing reminds us more of spring than COLOR COLOR COLOR!

This month's trend alert is colorful cabinetry. What we're seeing lately is a shift away from detailed cabinetry construction towards flat panel and shaker style with more emphasis on color.  We know a lot of people would find it hard to commit to an all green or red kitchen, so as an alternative, when designing kitchens, we've been painting just the island cabinets--this makes it easier for changes down the road and creates a focal point!  Who doesn't love the idea of changing their entire kitchen color scheme in one day!?

Here are our designer favorites:

Other great examples of colored cabinets:

Source

Source

Source

Source

Source

Source

Source

Source

Source

Source

Source

Source
